2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

Brand Name : Goodyear

Model Number : 2B9-223

Certification : ISO/TS16949, ISO9001

Place of Origin : Mexico

MOQ : 3 pieces

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Transport Package : Cartons

Specification : 24*24*24cm

Origin : Mexico

HS Code : 87088090

Port : Huangpu, China

Material : Rubber and Iron

Car Make : MERITOR

Position : Front and Rear

OEM : Yes

Type : Air Spring Suspension

Contact Now

Goodyear Air Spring 2B9-223 Replaces 2B9-2250 Contitech FD 200-19 1/4 M10 For MERITOR



Goodyear 2B9-223 OEM Cross:



Goodyear Part Number : 2B9-223

Goodyear Part Number : 2B9 223

Goodyear Part Number : 2B9223

Goodyear Part Number : 2B9-2250

Goodyear Part Number : 2B9 2250

Goodyear Part Number : 2B92250

Springride Part Number : S09201NB

Goodyear FLEXIBLE MEMBER 578-92-3-211

Goodyear FLEXIBLE MEMBER 578 92 3 211

Goodyear FLEXIBLE MEMBER 578923211

MERITOR (ROR) 21221395

MERITOR (ROR) 21222663

WEWELER US 06910F

Contitech Part Number : FD 200-19 1/4 M10
Contitech Part Number : FD200-19 1/4 M10

Contitech Part Number : FD 200 19 1/4 M10

Firestone Part Number : W01 M58 6887

Firestone Part Number : W01M586887

Firestone Part Number : W01-M58-6887

Firestone Bellows Number : 20
CF Gomma Part Number : 206797 20

Vibracoustic Part Number :V SP 2 B 12 R-10

Vibracoustic Part Number :VSP2B12R-10

Phoenix Part Number : SP 2 B 12 R-10

Phoenix Part Number : SP2B12R-10





Goodyear 2B9-223 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10

Screw Center Distance of Bottom Cover Plate : 89 mm



 Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4

Screw Center Distance Between Gas Hole and Nut : 44.5 mm



 Cover Plate

Top Cover Plate Diameter: 162.5 mm

Bottom Cover Plate Diameter: 162.5 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 260 mm

Minimum Height :75mm

Stroke Height : 285 mm



 Bumper block / Buffer block

Without Bumper Block



 Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Goodyear 2B9-223 Cross others OEM



OEM

MERITOR (ROR)21221395 21222663

WEWELER US 06910F

COMPETITOR

Contitech
FD 200-19 1/4 M10

Firestone

W01 M58 6887 20
CF Gomma 206797 20

Vibracoustic

V SP 2 B 12 R-10

Phoenix

SP 2 B 12 R-10

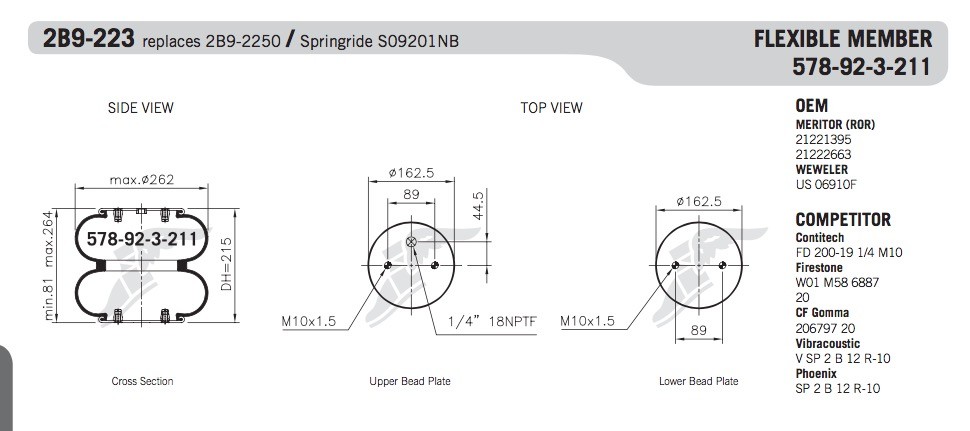

The drawing of Goodyear Air Spring 2B9-223:



2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10

2B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M102B9-223 Goodyear Air Spring Replaces 2B9-2250 Contitech FD 200-19 1/4 M10



Other kind of goodyear air springs:


57892222300000 20067192 N 2B9-223 METRIC 2B9-223 METRIC
57892222400000 20094430 Y 2B9-224 2B9-224
57892222500000 20035783 Y 2B9-225 2B9-225
2B9-225 20094432 N 2B9-225 Bellows Air Spring 2B9-225 Bellows Air Spring
57892222500019 20248277 Y ENIDINE 2B9-225 ENIDINE 2B9-225
57892222500029 20251574 Y 2B9-225 VIBRATECH 2B9-225 VIBRATECH
57892222500073 20131791 Y 2B9-225 NATIONAL STEEL 70604703 2B9-225 NATIONAL STEEL 70604703
57892222500074 20140152 Y 2B9-225 TTX 1999408 2B9-225 TTX 1999408
2B10-226 20094435 N 2B10-226 Bellows Air Spring 2B10-226 Bellows Air Spring
57892222800000 20094438 Y 2B9-228 2B9-228
57892222900000 20094439 Y 2B9-229 2B9-229
2B9-229 20067578 N 2B9-229 Bellows Air Spring 2B9-229 Bellows Air Spring
57892222900077 20215645 Y 2B9-229 WATSON & CHALIN AS0058 2B9-229 WATSON & CHALIN AS0058
57892222930000 20094444 Y 2B9-229 2B9-229
2B9-230 20067579 N 2B9-230 Bellows Air Spring 2B9-230 Bellows Air Spring
57892223400000 20067736 Y 2B9-234 METRIC 2B9-234 METRIC
57892223500000 20094446 Y 2B9-235 METRIC 2B9-235 METRIC
57892223500019 20094447 Y ENIDINE YI-2B9-235 METRIC ENIDINE YI-2B9-235 METRIC
57892223800000 20106791 Y 2B9-238 2B9-238
2B9-238 20110594 N 2B9-238 2B9-238
57892223900000 20106792 Y 2B9-239 2B9-239
2B9-239 20110595 N 2B9-239 Bellows Air Spring 2B9-239 Bellows Air Spring
57892224000000 20035767 Y 2B9-240 KIT 2B9-240 KIT
2B9-240 20094448 N 2B9-240 Bellows Air Spring 2B9-240 Bellows Air Spring
57892224100000 20106793 Y 2B9-241 2B9-241
57892224200000 20106794 Y 2B9-242 2B9-242
2B9-242 20110597 N 2B9-242 2B9-242
57892224300000 20106795 Y 2B9-243 2B9-243
2B9-243 20110599 N 2B9-243 2B9-243
57892224400000 20113666 Y 2B9-244 2B9-244
2B9-244 20113667 N 2B9-244 Bellows Air Spring 2B9-244 Bellows Air Spring
57892224500000 20119614 Y 2B9-245 2B9-245
2B9-245 20113706 N 2B9-245 Bellows Air Spring 2B9-245 Bellows Air Spring
57892224600000 20139383 Y 2B9-246 2B9-246
