SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press

Product Categories
Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press

Brand Name : Airsustech

Model Number : 8X2

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 3 pieces

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : SP253

N.W. : 3.1 Kg

Warranty : One Year

Pressure Ability : 0.2-0.8 M PA

Air Inlet : G1/2

Color : Black

Top Plate Diameter (Width) : 135 mm

Bottom Plate Diameter (Width) : 135 mm

Stroke Rubber Bellows : 75~230 mm

Bumper Block : Without

Screw (Nut) : M8

Trademark : Norgren

Transport Package : Cartons

Specification : 24*24*24 cm

Origin : Europe

HS Code : 8708809000

Port : Huangpu, China

Function : Reduce Vibration

Material : Rubber and Aluminum

Usage : Industrial

Load Type : Compression

Production Process : Vulcanization

Shape : Convoluted

Contact Now

SP253 Dunlop Air Spring Norgren M/31082 Compact Air Bellow For FORMING PRESS


Airsustech 8X2 Cross OEM:



Airsustech :8X2

Dunlop:SP253

Dunlop:SP 253

Norgren:M/31082

Norgren:M 31082

Norgren:M31082



Type

Order No.

Rubber bellows only

66501

with dismountable plates, G1/2 air inlet

66505




Min. pressure 0 bar
Return force to min height ≤ 300 N
Overall weight 3.5 kg



Airsustech 8X2  Vibration isolation - dynamic characteristic values

Design height H: recommended 200mm, minimum 180mm

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Force (Load) [kN]

3.9

5.3

6.7

8.2

9.7

11.3



Spring rate [N/mm]

76

97

118.5

140

161

181.5

4.1

Natural frequency [Hz]

2.2

2.2

2.1

2.1

2.1

2.0







Airsustech 8X2  Pneumatic application - static characteristic values

Force F [kN]

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Height H [mm]

220

2.9

4.03

5.16

6.41

7.65

8.98

4.3

200

3.86

5.27

6.68

8.21

9.73

11.3

4.1

150

5.9

8

10.1

12.4

14.7

16.9

3.2

100

8.2

10.9

13.7

16.6

19.4

22.4

2





Airsustech 8X2 air spring used for FORMING PRESS:

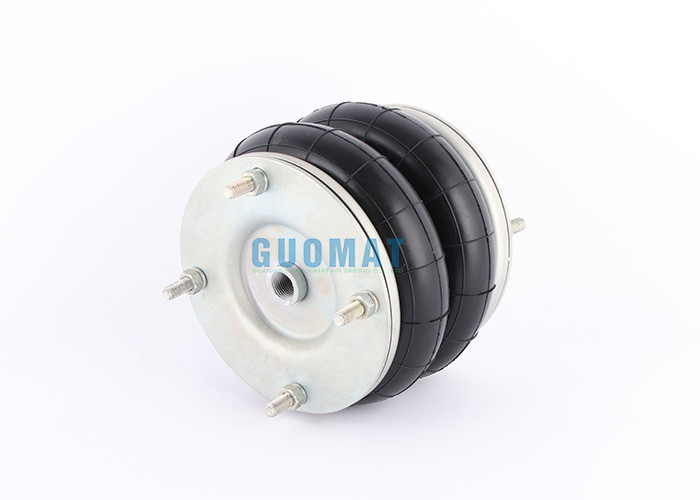

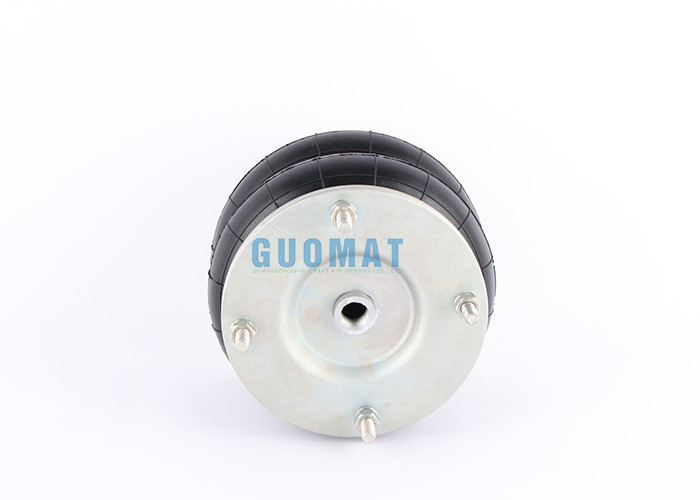

SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press

SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming PressSP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming PressSP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press



Other Norgen air springs models:



Model Nominal Ø (inch) x convolutions Maximum stroke (mm) Air Port size
M/31021 2 3/4" x 1 20 G1/4
M/31022 2 3/4" x 2 45 G1/4
M/31023 2 3/4" x 3 65 G1/4
M/31041 4 1/2" x 1 140 G3/8
M/31042 4 1/2" x 2 280 G3/8
M/31061 6" x 1 155 G1/2
M/31062 6" x 2 155 G1/2
M/31081 8" x 1 95 G3/4
M/31082 8" x 2 185 G3/4
M/31091 9 1/4" x 1 105 G3/4
M/31092 9 1/4" x 1 230 G3/4
M/31121 12" x 1 105 G3/4
M/31122 12" x 2 215 G3/4
M/31123 12" x 3 315 G3/4
