Goodyear Super Cushion 1B5500 579-913-500 579-912-500-00000 Single Convoluted Industrial Air Springs Assembly
Cross Reference
| Goodyear part no.: 1B5-500
Goodyear part number: 1B5500 Goodyear part number: 1B5 500 Goodyear 579-912-500-00000 / 57991250000000 Goodyear 579-913-500 / 579 913 500 / 579913500 Goodyear 1B5 |
| Enidine part no.: YI-1B5-500 Enidine part no.: YI 1B5-500 Enidine part no.: YI 1B5 500 Enidine part no.: YI1B5500 |
Specifications and Tecnical Data: 1K130070 super cushion
Top and bottom plate mounting threads: 2pcs x M8
The screw center distance on top plate and bottom plate: 44.5mm
Air inlet: 1/4
Top plate and bottom plate cover plate diameter: 85mm
Rubber bellow outer diameter at 0.7MPA: 150mm
Rubber bumper: Without
Girdle ring: No
HS Code: 8708809000
Sample: Available
MOQ: 1pcs
Condition: 100% New
Other 1B5 air springs replacement we could offer
| Part Number | Usable
Stroke | Max Dia
@ 100
psi In | Min Ext
Height
Inches | Max Ext
Height
Inches | Bumper | Force Available At Actuator
Height Limit (Pounds) | Force Available At Compressed
Height Limit (Pounds) | Air
Fitting
Size (in) |
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi |
| 1B5-500 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1525 | 1210 | 900 | 595 | 1/4 |
| 1B5-502 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1525 | 1210 | 900 | 595 | 3/4 |
| 1B5-503 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1525 | 1210 | 900 | 595 | 1/4TV |
| 1B5-510 | 3.0 | 6.0 | 1.8 | 4.8 | NO | 530 | 390 | 260 | 145 | 1620 | 1290 | 955 | 635 | 1/4 |
| 1B5-512 | 3.0 | 6.0 | 1.8 | 4.8 | NO | 530 | 390 | 260 | 145 | 1620 | 1290 | 955 | 635 | 3/4 |
| 1B5-520 | 4.0 | 6.5 | 1.8 | 5.8 | NO | 445 | 305 | 180 | 80 | 2100 | 1660 | 1230 | 850 | 1/4 |
| 1B5-521 | 4.0 | 6.5 | 1.8 | 5.8 | NO | 445 | 305 | 180 | 80 | 2100 | 1660 | 1230 | 850 | 3/4 |
Usage
Air spring applications are numerous and varied. Air springs are commonly used in vehicle suspension systems to provide a smoother ride and better handling. They are also used in industrial machinery, such as presses and punch tools, to provide damping and isolation. Air springs have also been used in aerospace applications, including space shuttles and satellites. Other applications include use in air suspension seats for heavy equipment, vibration isolation mounts for sensitive equipment, and even in sports equipment such as shoes and bicycle saddles.

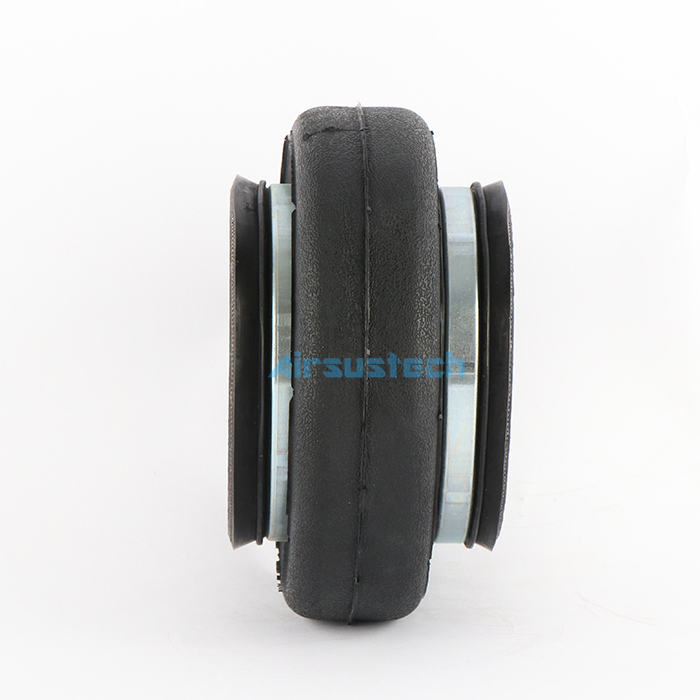

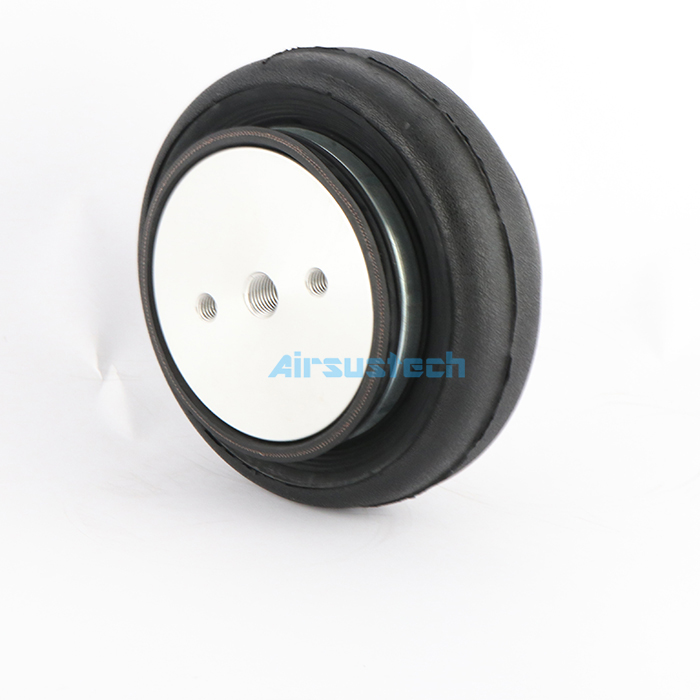

The image of 1K130070 industrial air springs
