AIRSUSTECH Air Bag 1B7731 Replaces Torpress Air Spring 94047 Model 131 For Sand Blast Rooms
Cross Reference
Air spring supplier/competitor: Torpress
Supplier number: 94047
Model 131, T131
Air spring supplier/competitor: Firestone
Supplier number: W01-358-7731, W01 358 7731, W013587731, WO1-358-7731, WO1 358 7731, WO13587731
Firestone Style 131
Air spring supplier/competitor: Continental, Contitech
Supplier/Competitor: FS 70-7 CI 1/4 NPT; FS70-7CI1/4NPT; FS 70 7 CI 1/4 NPT; FS 70-7 CI
Contitech order number 75240
Specifications and Detailed Technical Parameters
Max OD: 165mm
Min. Height: 50mm
Max. Height: 115mm
Air fitting: 1/4NPTF, Centered
Blind nuts on top plate: 2pcs x 3/8-16UNC
The screw center distance on top plate: 44.5mm
Blind nuts on bottom plate: 2pcs x 3/8-16UNC
The screw center distance on bottom plate: 44.5mm
Top bead plate diameter: 115mm
Bottom bead plate diameter: 115mm
Rubber bumper: Without
Girdle hoop/ Belt loop: 1 piece
Rubber air springs can be used in Sand Blast Rooms
The greater the stiffness of the rubber airbag material, the greater the stiffness of the air spring, and the higher its first-order resonance frequency, which results in an increase in the minimum operating frequency when the system is working. Therefore, the rubber airbag isolation system should reduce the material stiffness and reduce the natural frequency, so that the minimum operating frequency of the system is as low as possible when there is sufficient margin for the bearing capacity of the air spring isolator.
When the vibrating table vibrates laterally, the stiffness of the reed bag rubber material is much greater. The body structure of the rubber air spring is soft, so it has comprehensive shock isolation in the axial, lateral and rotational directions. When the mechanical vibrating table vibrates laterally, the stiffness of the reed rubber material is much greater.
The rubber air spring can reduce the noise of the equipment during use and improve the service life of the equipment.
Other air spring replacement we could offer
| MODEL | STANDARD Code |
| 16 | 93029 |
| 131 | 94047 |
| 110 | 93113 |
| 88540 |
| 88820 |
| 116 | 93027 |
| 19 | 94016 |
| 94014 |
| 23 B | 202665 |
| 26 | 84181 |
| 20 | 86600 |
| 245 | 93740 |
| 22 | 94091 |
| 88544 |
| 21 BR | 89457 |
| 21A BR | 97300 |
| 21B BR | 92154 |
| 28 BR | 92527 |
| 28 B | 90559 |
| 29 | 93056 |
| 93166 |
| 31 | 95210 |
| 325 | 203332 |
| 322 | 92615 |
| 89413
(87987) |
| 321 | 88110 |

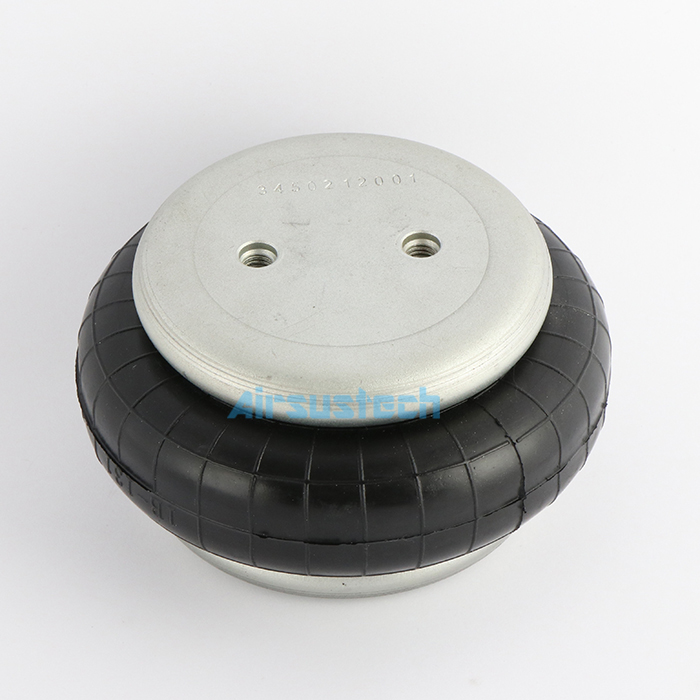

Product Picture
