3B2300 Industrial Air Springs Triple Convoluted Air Bags Suspension Design Height 187MM
Product Description:
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Specifications: 3B2300
| Air Inlet | 1/2-14 NPT |
| Top Cover Plate Width | 113 MM |
| Bottom Cover Plate Width | 113 MM |
| Design Height | 187 MM |
| Base Hole | 3/8-16 UNC |
| Rubber Bellows Diameter | 152 MM |
| Screw Center Distance | 44.5 MM |
| Distance Gas Hole Between Nuts | 22 MM |
| Top Plate Hole Stud Qyt | Three |
| Bottom Plate Hole Stud Qyt | One |
Product Core Competitiveness:
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.
Support and Services:
- Our AIRSUSTECH Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
- We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
- Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

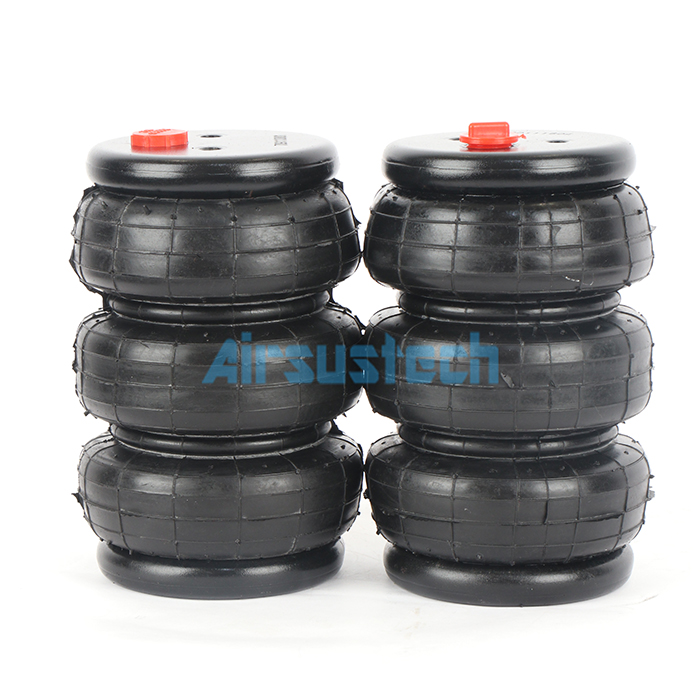

The Real Pictures of 3B2300:
