W01-358-7180 Firestone Industrial Air Springs Actuator Cross Contitech FD 330-22 363
Product Description:
An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air. AIRSUSTECH air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard
two ply air spring bellows is actually made up of four layers:
a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at a specific bias angle to the first ply).
d. An outer cover of calendered rubber.
Specifications and Detailed Technical Parameters: 2B6330
2B6330 Specifications
| Air Hole | 1/4 NPTF |
| Number of Ply Bellows | Double |
| Minimum Usable Height | 81 MM |
| Max Expanded Height | 305 MM |
| Stroke Height | 224 MM |
| Threaded Hole | 2X3/8-16UNC |
| Top/Bottom Cover Plate Diameter | 231 MM |
| Hole/Stud Qty | Two On One Plate |
| Screw Center Distance | 157 MM |
| Distance Gas Hole Between Nut | 73 MM |
| Bellow Max. Diameter | 325 MM |
Technical Parameters
| Force Table (Use for Airstroke actuator design) |
| Assembly Height (in.) | Volume @ 100 PSIG (in3) | Pounds Force |
| @20 PSIG | @40 PSIG | @60 PSIG | @80 PSIG | @100 PSIG |
| 10.0 | 809 | 950 | 1,810 | 2,830 | 3,810 | 4,840 |
| 3.0 | 752 | 1,170 | 2,260 | 3,460 | 4,670 | 5,880 |
| 8.0 | 685 | 1,130 | 2,590 | 3,940 | 5,350 | 6,700 |
| 7.0 | 610 | 1,430 | 2,900 | 4,390 | 5,950 | 7,450 |
| 6.0 | 529 | 1,540 | 3,170 | 4,780 | 6,470 | 8,110 |
| 5.0 | 442 | 1,640 | 3,380 | 5,100 | 6,880 | 8,630 |
| 4.0 | 349 | 1,730 | 3,520 | 5,340 | 7,180 | 9,020 |
Cross References:
| Firestone | W01-358-7180, W013587180, W01 358 7180 WO1-358-7180, WO13587180, WO1 358 7180 |
| Contitech | FD 330-22 363, FD 330 22 363, FD33022363 FD 33022 363, FD 33022363, FD330-22 363 FD330 22 363, FD33022 363, FD33022363 FD 33022 363, FD330-22363, FD 330-22363 |
| Goodyear | 2B12-425/311, 2B12 425/311, 2B12425/311 |
| Triangle | 6316/4363 |
| Airkraft | 115061/3B-356 |
| Vibracoustic | VSP2B22R7180 |
| EI Ride | 8030190 |
| Leland | Sc2075 |
| Navistar | 1685179C1 |
| Hendrickson | 1VA1816 |
| Ridewell | 1003587180C |
| SAF Holland | 57007180 |
| Watson & Chalinl | AS0154 1G/01881F, AS01541G/01881F |
| Peerless | 0550 00001 |
2B6330 Advantages:
- Affordable
- Wide Range
- Durability
- No Internal Rod, Piston, or Sliding Seals
- No Friction
- Flexible
- Angular Capabilities
- Side Loading Capabilities
- Compact Starting Height
- Factory Tested

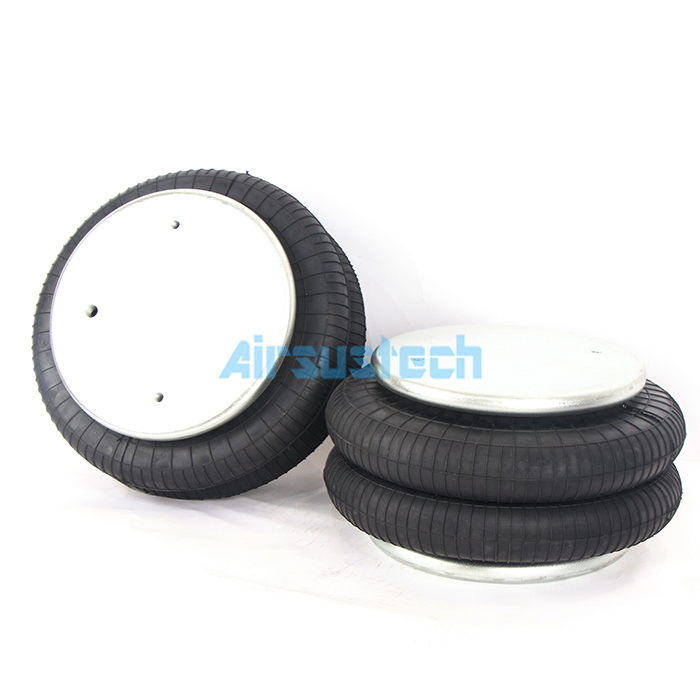

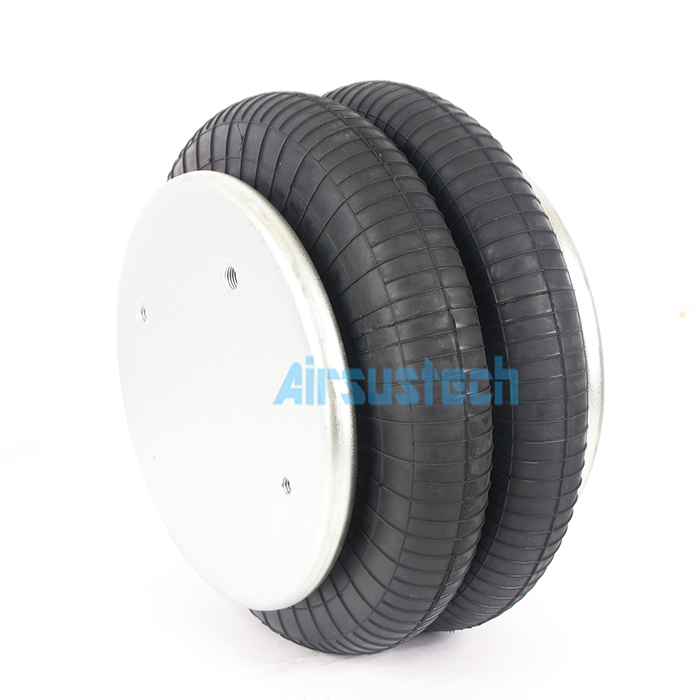

The Related Pictures of 2B6330:
