Commercial Truck Suspension Air Spring Continental ContiTech 66666 for Peterbilt
Product Dimensions
Dimensions - Compressed Height: 197 mm
Dimensions - Extended Height: 623 mm
Dimensions - Top Plate Diameter: 231 mm
Dimensions - Piston Diameter: 205 mm
Dimensions - Natural Diameter: 315 mm
Dimensions - Center to Center Distance: 157 mm
Screw Nuts Type: 2×3/8-16UNC
Air Connection: 1/2NPT
OEM Original Manufacturer
| ContiTech 66666 |
| Firestone W01-358-8864, WO1-358-8864 Firestone W013588864, WO13588864 Firestone W01 358 8864, WO1 358 8864 |
| Firestone 1T15M-9 Firestone 1T15M9 Firestone 1T15M 9 |
| Peterbilt 03-08716 Peterbilt 0308716 Peterbilt 03 08716 |
| FleetPride AS8864 |
| Kenworth C81-1011 Kenworth C811011 Kenworth C81 1011 |
| Triangle AS-8898 Triangle AS8898 Triangle AS 8898 |
| TRP AS88640 |
| Firestone W01-358-9108 1/4NPT Firestone W013589108 1/4NPT Firestone W01 358 9108 1/4NPT |
| Firestone W01-358-9104 1/4NPT, Bumper Firestone W013589104 1/4NPT, Bumper Firestone W01 358 9104 1/4NPT, Bumper |
| Firestone W01-358-9106 3/4NPT Firestone W013589106 3/4NPT Firestone W01 358 9106 3/4NPT |
| Firestone W01-358-9117 3/4NPT, Bumper Firestone W013589117 3/4NPT, Bumper Firestone W01 358 9117 3/4NPT, Bumper |
| Goodyear 1R12-1097 Goodyear 1R121097 Goodyear 1R12 1097 |
Core Role and Peterbilt Model Adaptability
AIRSUSTECH air spring model 1T0378 is a core component of rear axle air suspension designed for Peterbilt American long-head trucks (especially for main models such as 579/567/389). Its role goes beyond basic shock absorption and is directly related to vehicle stability, load efficiency and operating costs.
1. Dynamic load support
Load range:
A single spring can support 4.5~7 tons (pressure level needs to be selected according to the rear axle configuration), covering Peterbilt common working conditions:
Light load (container transportation): air pressure 0.6MPa
Heavy load (ore/wood): air pressure 0.9~1.2MPa
Adaptive leveling:
Linked with Peterbilt original height valve (such as Wabco 432020) to keep the height of the cargo compartment constant from the ground and avoid cargo tilting.
2. Improve driving safety
Problem: 1: High-speed rollover tendency
Solution: Lower the center of gravity + enhance lateral support, reduce the roll angle by 35%
Problem 2: Long wheelbase curve drag
Solution: Independent airbag pressure compensation on the rear axle to prevent the tire from leaving the ground
Problem 3: Leaf spring break risk
Solution: No metal fatigue, the precursor of rubber layer break is chronic air leakage
3. Protect key components
Extend the life of the axle: Reduce the impact of the drive axle gear (compared with the leaf spring vibration attenuation rate ↑60%)
Tire protection: Evenly distribute the ground pressure and reduce eccentric wear (tire life ↑20%)

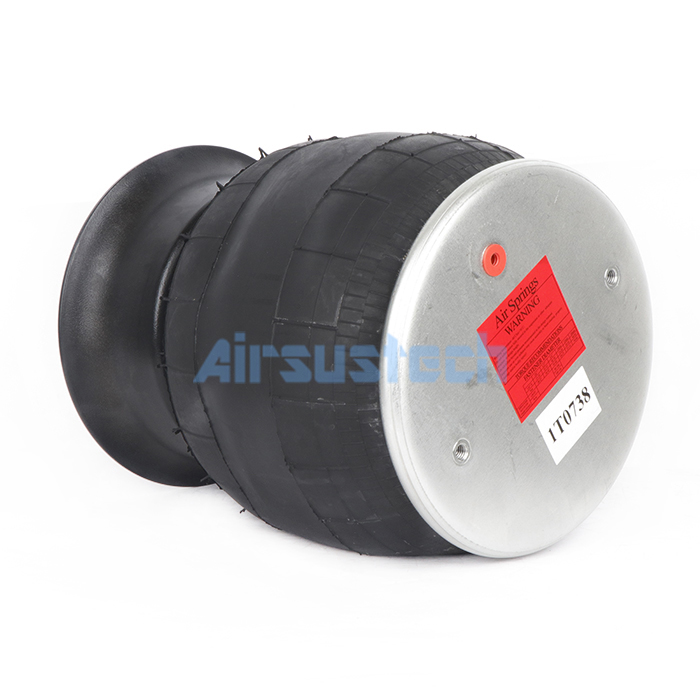

Product Images
Factory Workshop
|
|
Commercial Truck Suspension Air Spring Continental ContiTech 66666 for Peterbilt Images
|
