Contitech FS 70-7 2.5 Inches Convoluted Air Spring for Material Handling System
Product Detailed Datas
| [1] Minimum Height: 2.0 in. |
| [2] Maximum Height: 4.5 in. |
| [3] Center Distance: 1.75 in. |
| [4] Cover Plate Diameter: 4.25 in. |
| [5] Maximum Outside Diameter: 6.50 in. |
| [6] Installation Space: 7.09 in. |
| [7] Threaded Hole: 2×3/8UNC |
| [8] Air Connection: 1/4NPT |
OEM Original Manufacturer
Manufacturer: Contitech
Number: FS 70-7, FS 707, FS 70 7
Manufacturer: Phoenix
Number: SP 1B 05, SP 1B05, SP1B05
Manufacturer: Bosch
Number: 8224 19002, 822419002
Manufacturer: Festo
Number: EB-165-65, EB16565, EB 165 65
Manufacturer: Weforma
Number: WBE 200-E1, WBE 200E1, WBE 200 E1
Manufacturer: Firestone
Number: W01-M58-6155, W01M586155, W01 M58 6155
The Advantages of AIRSUSTECH Air Springs
- A Complete Production Capablity and Special Testing Facilities
- German import WP GK-200A model of mixing machine and rubber mixing line
- Italy technology and independent design improved cord breaking and bead wire production workishop
- Air spring forming workshop
- Air spring vulcanizing workshop
- Pieces of metal processing workshop
- Air spring crimping workshop
- A first-class production technology and scientific production workshop, is to ensure that my company first-class product them in conditions
Other OEM Numbers Cross Contitech
| Single Convoluted | Double Convoluted | Triple Convoluted |
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI | |

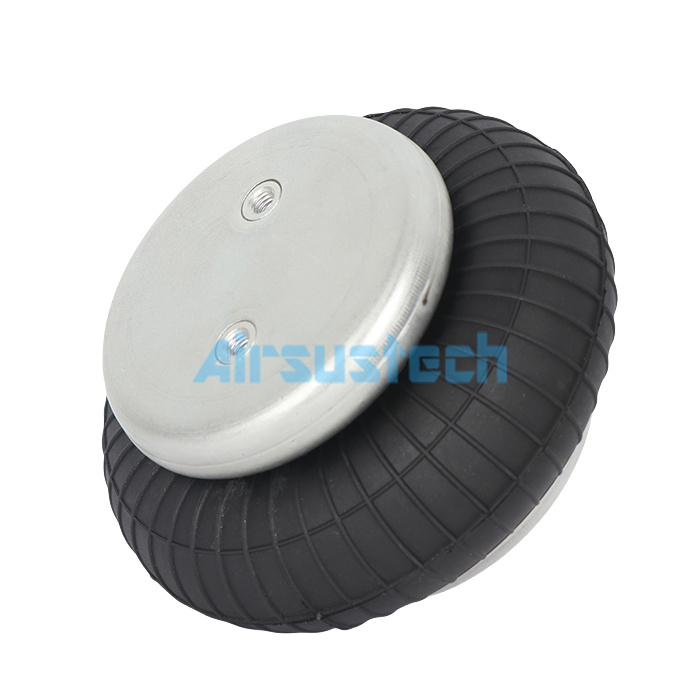

The Real Pictures
