Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 for Replace
Basic Information
| Warranty | 12 months | Place of Origin | Gunangzhou, China |
| Car Model | Truck | Brand | AIRSUSTECH |
| Type | air spring | Fitting Position | front or rear |
| Condition | brand-new | keywords | air spring susupension parts |
| Goodyear | 1B8-550 | Firestone | W01-358-7564 |
| Contitech | FS 120-10 | Packing | Carton |
Part Number
Firestone Part Number: W01-358-7564
Firestone Part Number: W01 358 7564
Firestone Part Number: W013587564
Firestone Part Number: WO1-358-7564
Firestone Part Number: WO1 358 7564
Firestone Part Number: WO13587564
Goodyear Part Number: 1B8-550
Goodyear Part Number: 1B 8-550
Goodyear Part Number: 1B8550
Contitech Part Number: FS120-10
Contitech Part Number: FS 120-10
Contitech Part Number: FS12010
Product Core Competitiveness
1. Imported Rubber
Manufactured using advanced sol technology, the rubber offers enhanced acid resistance, superior corrosion resistance, and a significantly longer product lifespan.
2. One-Piece Casting Process
Incorporates a seamless casting design, providing outstanding durability, superior airtightness, leak prevention, high surface density, and excellent burst resistance.
3. In-Situ Installation
Designed with the same shape and dimensions as the original model, ensuring direct replacement without any modifications for quick and hassle-free installation.
4. Premium-Grade Steel
Constructed from high-quality steel, delivering exceptional fracture resistance, corrosion protection, and an extended service life.
Goodyear Other Kinds of Air Bellows
| Part No. | Usable Stroke | Max Dia. @ 100 psi In | Min Height Inches | Max Height Inches | Bumper | Force At Actuator Height Limit (Pounds) | Force At Compressed Height Limit (Pounds) |
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi |
| 1B12-305 | 4.6 | 13.2 | 2.6 | 7.2 | YES | 3640 | 2710 | 1840 | 1095 | 9035 | 7110 | 5250 | 3480 |
| 1B12-313 | 4.9 | 13.2 | 2.3 | 7.2 | NO | 3640 | 2710 | 1840 | 1095 | 9195 | 7185 | 5305 | 3520 |
| 1B14-350 | 1.9 | 15.2 | 2.3 | 7.2 | NO | 4910 | 3705 | 2625 | 1605 | 13320 | 10585 | 7975 | 5290 |
| 1B14-351 | 3 | 15.2 | 4.2 | 7.2 | YES | 4910 | 3705 | 2625 | 1605 | 11760 | 9345 | 7000 | 4630 |
| 1B14-352 | 4.9 | 15.2 | 2.3 | 7.2 | NO | 4910 | 3705 | 2625 | 1605 | 13320 | 10585 | 7975 | 5290 |
| 1B14-362 | 3 | 15.9 | 2.3 | 8.3 | NO | 4865 | 3625 | 2530 | 1520 | 14870 | 11705 | 8730 | 4795 |
| 1B14-364 | 6 | 15.9 | 2.3 | 8.3 | NO | 4865 | 3625 | 2530 | 1520 | 14870 | 11705 | 8730 | 5795 |
| 1B15-375 | 5.6 | 17.5 | 2.3 | 7.9 | NO | 4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
| 1B15-376 | 3.7 | 17.5 | 4.2 | 7.9 | YES | 4980 | 3775 | 2470 | 1490 | 13960 | 11140 | 8295 | 54656 |
| 1B15-377 | 5.6 | 17.5 | 2.3 | 7.9 | NO | 4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
| 1B15-378 | 3.7 | 17.5 | 4.2 | 7.9 | YES | 4980 | 3775 | 2470 | 1490 | 13960 | 11140 | 8295 | 5465 |

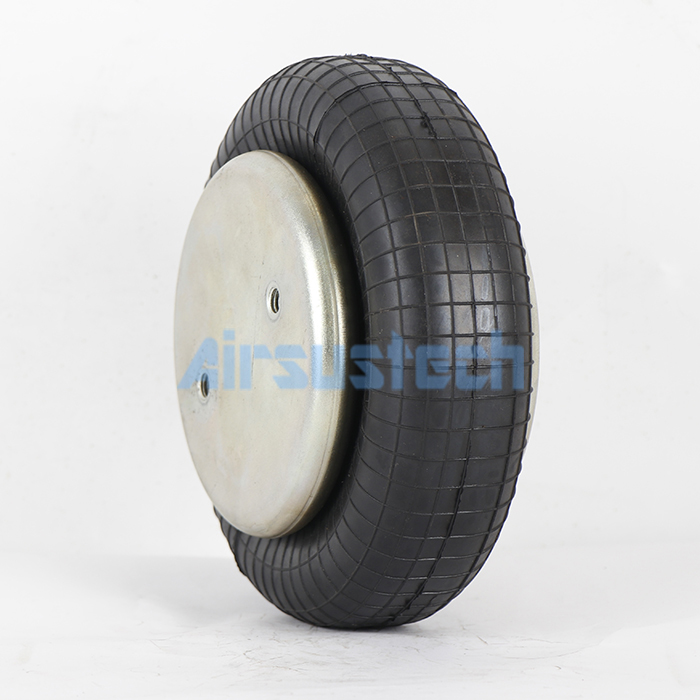

1B8×4 Real Pictures
