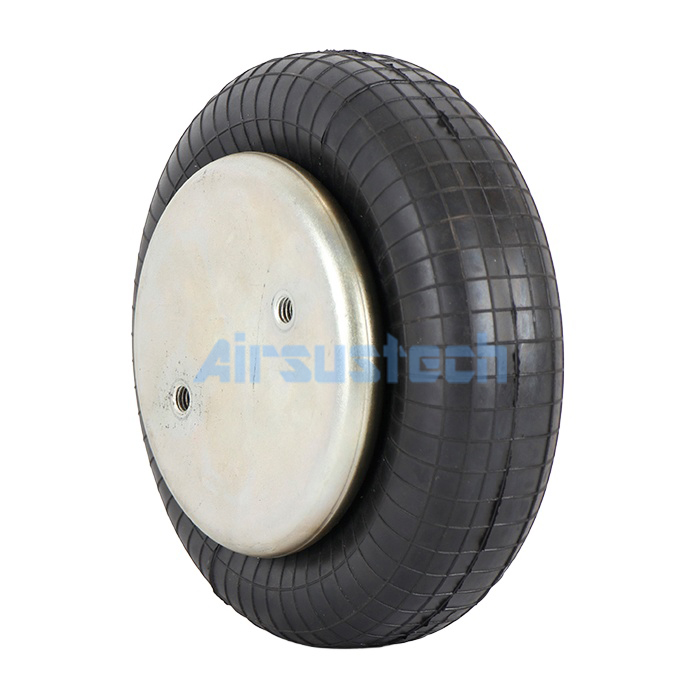

Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator
Product Description
Carefully designed for superior performance and versatility, they feature a crimped assembly for strength and durability. The bellows are made of natural rubber, renowned for its exceptional dynamic properties and versatility. This makes our actuators powerful and adaptable to a wide range of operating conditions. The actuator's top and bottom plates are crimped and zinc-plated. This additional feature ensures excellent corrosion resistance and guarantees long-term high performance. Thanks to their unique combination of performance, adaptability, and durability, our pneumatic bellows actuators are a reliable choice for all industrial needs.
Product Specifications
| Minimum height | 2.0 in. |
| Max. height | 5.9 in. |
| Maximum diameter | 9.09 in. |
| Installation space required | 9.65 in. |
| Center distance diameter | 2.76 in. |
| Plate diameter | 5.55 in. |
| Air hole | 1/4NPT |
| Threaded hole type | 3/8-16UNC |
| Material | rubber and steel |
| Warranty | 12 months |
Product Corresponding Models
Manufacturer: Contitech
Refer Number: FS 120-10 / FS 12010 / FS 120 10
Manufacturer: Firestone
Refer Number: W01-358-7564 / W013587564 / W01 358 7564
Manufacturer: Goodyear
Refer Number: 1B8-550 / 1B8550 / 1B8 550
Manufacturer: Goodyear
Refer Number: 579-913-530 / 579913530 / 579 913 530
Packaging & Shipping
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.
